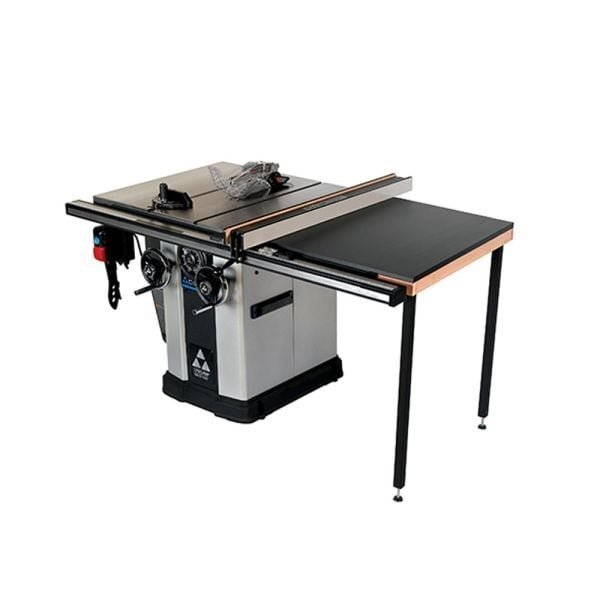

Delta Unisaw 36-L336-92575

$2,538.00

Free worldwide shipping on all orders over $100

  • 30 days easy returns
  • Order yours before 5:00pm for same day dispatch



Delta Unisaw 36-L336-92575
Delta Unisaw 36-L336-92575
$2,538.00

[wpforms id=”1190″ title=”true” description=”Request a call back”]

Delta 36-L336 Unisaw Features:

  • Single-Cast Trunnion System results in incredible vibration control providing continuous smooth operation and dependable accuracy
  • Dual Front Cranks make adjusting blade height and blade bevel easy, accurate, and repeatable in all your operations
  • The Bevel Dial allows fine tuning of the blade bevel with ease and provides accuracy you can trust to within 1/4°
  • The Cabinet Construction consists of a large cast iron base providing stability and solid footing
  • Tool-Free Split Guard design allows a true rise-and fall riving knife by using a lever on the front of the saw or inside the throat plate. You can then add the anti-kickback paws and guard to the riving knife without tools
  • Table Top provides more surface area to stabilize the product and offers outstanding smoothness and superior ease

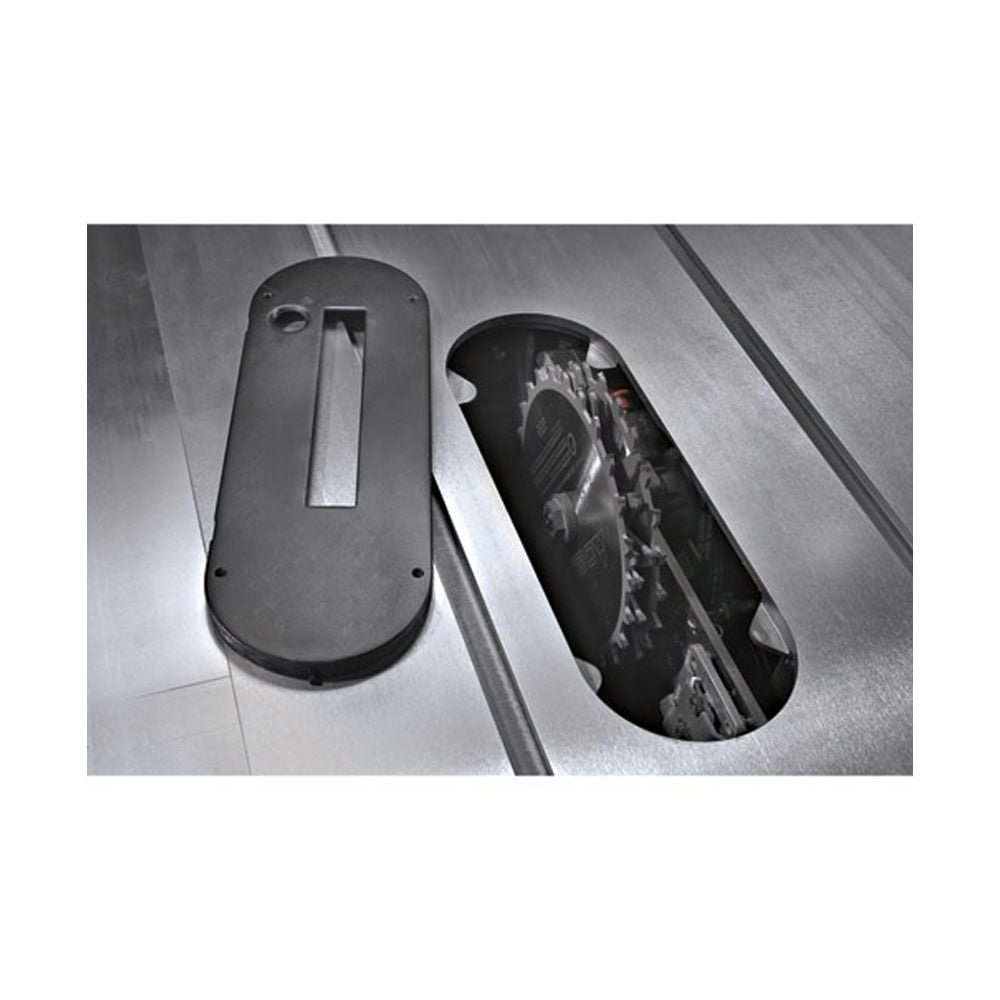

  • The Largest Blade Opening in class makes fine tuning your riving knife and blade changes easier than ever
  • The Push Button Arbor Lock makes the blade changing process simple and more natural with the use of only 1 wrench
  • Large, Easy to Access ON/OFF switch is multi-directional and can be activated from any angle

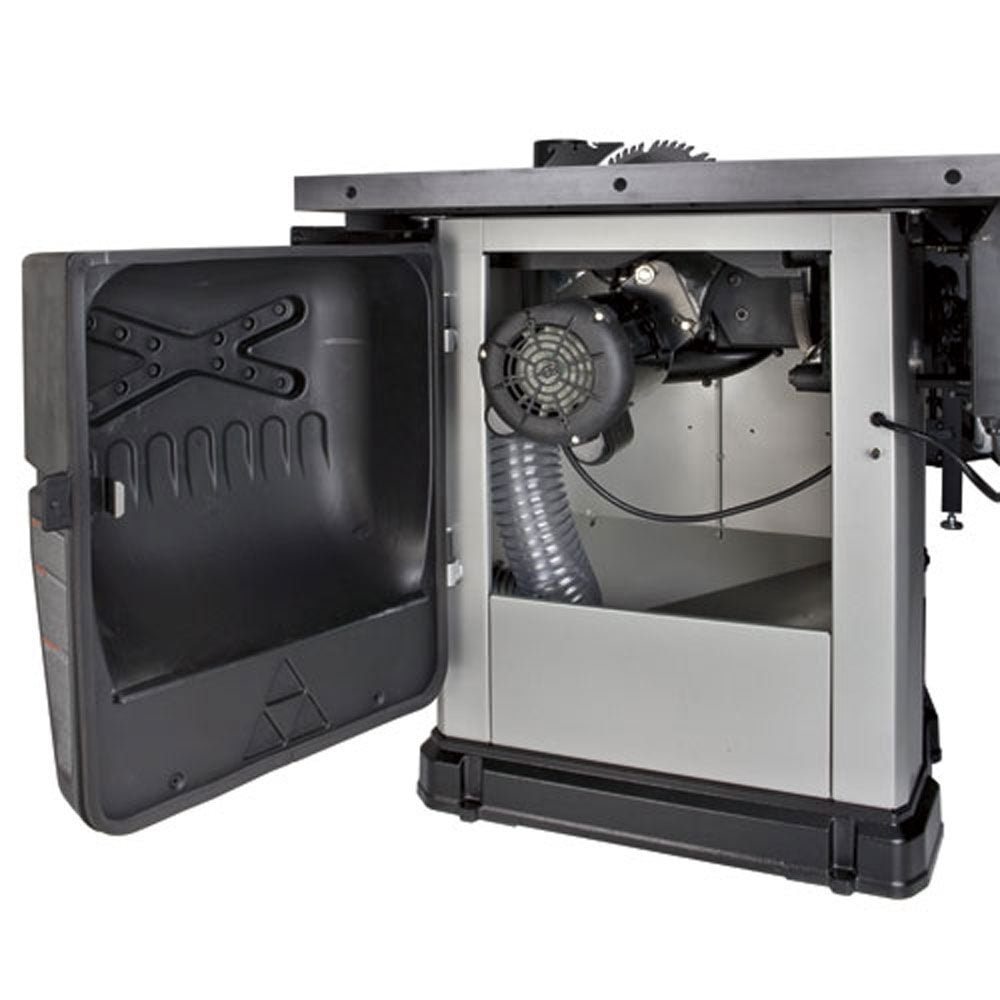

  • Bi-Level Dust Extraction uses only 1 collector hose coupled with a sloping bottom cabinet used to navigate dust, and the new closed bevel gauge provides a sealed interior. This combination results in much higher level of dust collection
  • BIESEMEYER® Fence System provides hairline pointer and built-in tape allowing you to make precision set-ups, cut after cut. 9-ply fence faces have improved tolerances like no other as well as an improved cam front lock lever for an over lock with a curved edge
  • On-Board Miter Gauge Storage is conveniently located on the side of the cabinet and On-Board Wrench and
  • Push Stick Storage is conveniently located beside the switch
  • UL Listed

Delta 36-L336 Specifications:

  • Horsepower: 3-HP
  • Voltage: 230V
  • Phase: 1-Phase
  • Hertz: 60 Hz
  • Arbor Size: 5/8″
  • Blade Diameter: 10″
  • Blade Speed: 4,300-RPM
  • Max Rip To Right Of Blade: 36″
  • Max Rip To Left Of Blade: 13-1/2″
  • Depth of Cut at 45°: 2-1/8″
  • Depth of Cut at 90°: 3-1/8″
  • Distance Front of Table to Center of Blade: 18-1/2″
  • Distance Table in Front of Saw at Max Depth of Cut: 13-1/2″
  • Max Width of Dado: 1-1/8″
  • Miter Gauge Groove: 3/8″ x 3/4″
  • Chip Exhaust Opening: 4″ and 5″
  • Table Height: 35″
  • Size of Cast Iron Top (with wings only): 31″ x 40″
  • Table Size with BIESEMEYER® Table, Wing & Laminate Board: 31″ x 64″
  • Length: 71″
  • Width: 37″
  • Width with Fence on Saw: 46″
  • Height: 35″
  • Weight: 624 lbs.
