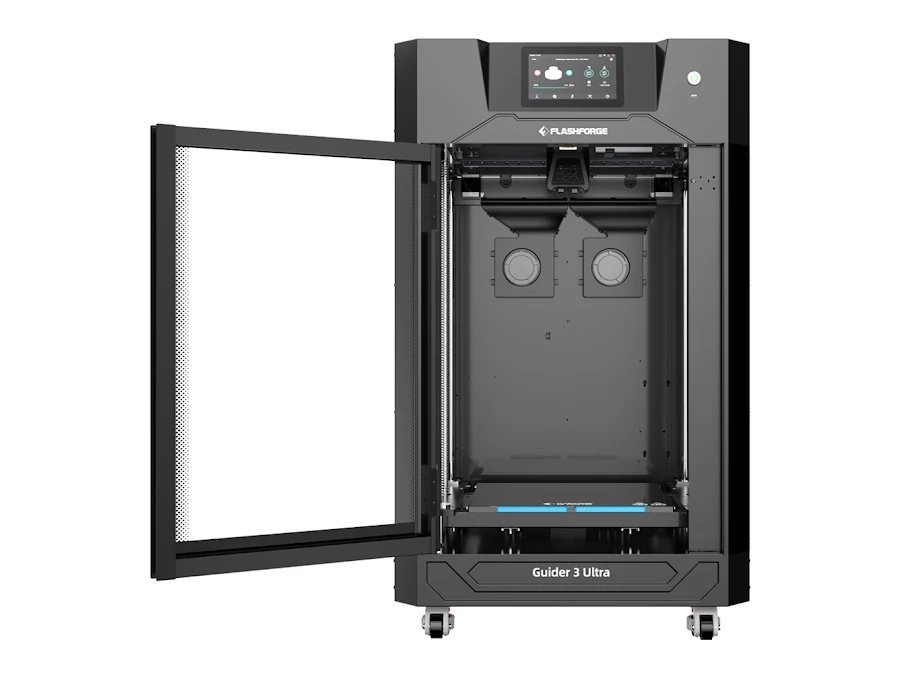

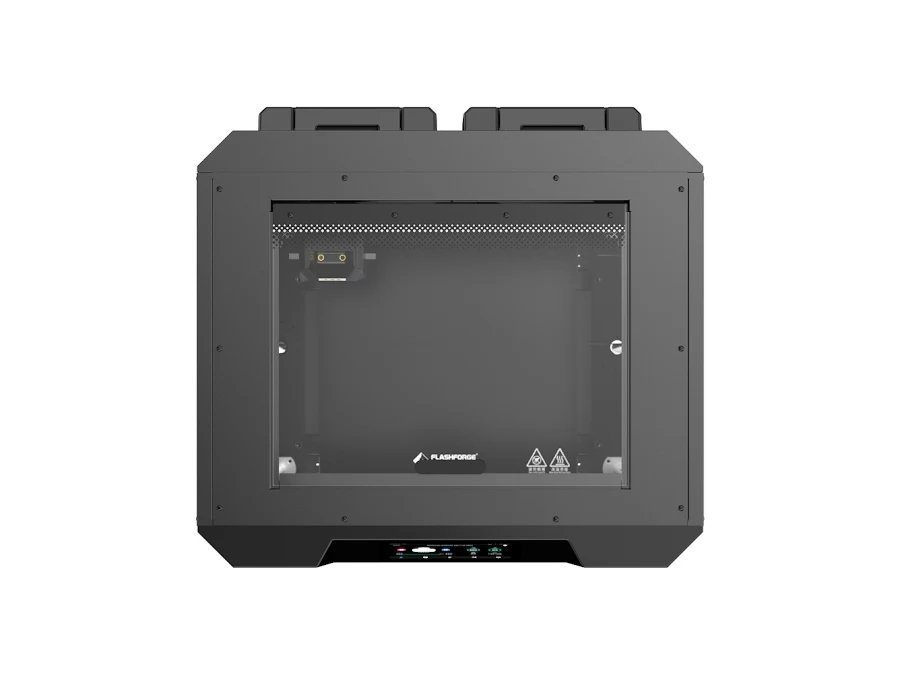

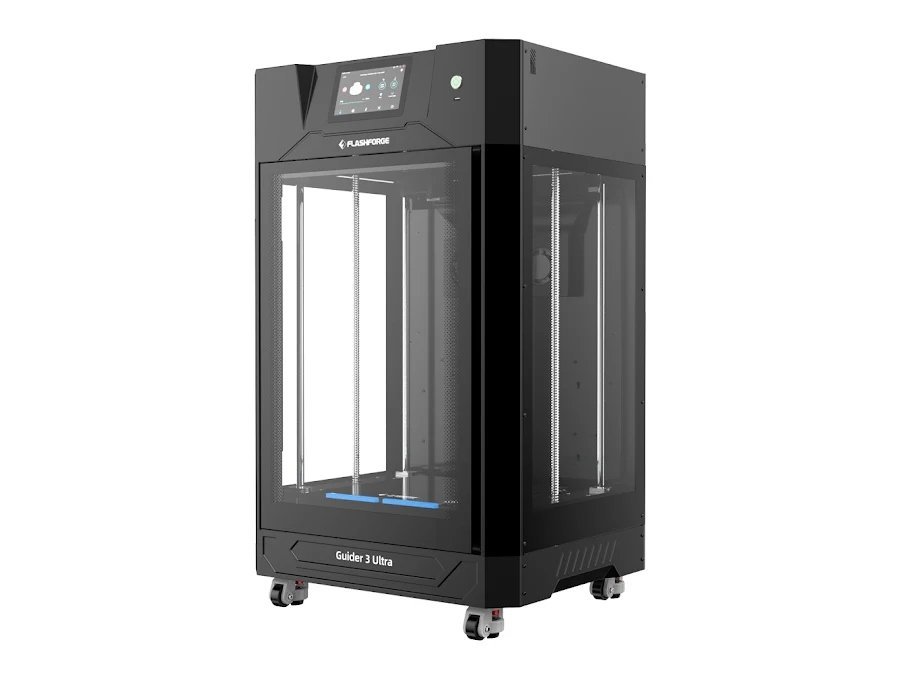

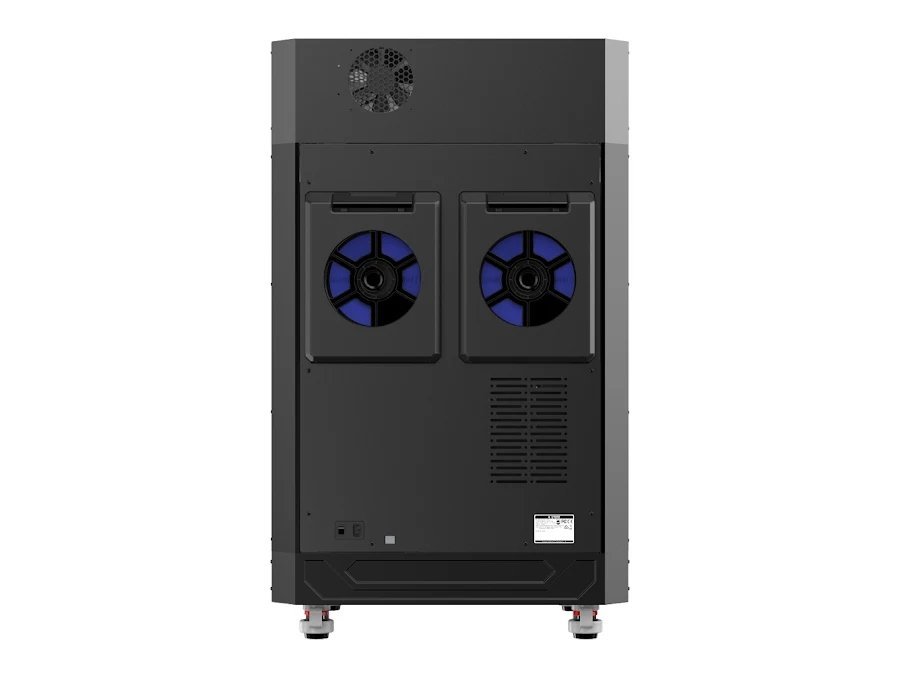

Flashforge Guider 3 Ultra-28561
Flashforge Guider 3 Ultra-28561 - Image 2
Flashforge Guider 3 Ultra-28561 - Image 3
Flashforge Guider 3 Ultra-28561 - Image 4
Flashforge Guider 3 Ultra-28561 - Image 5

Flashforge Guider 3 Ultra-28561

$3,093.75

Free worldwide shipping on all orders over $100

  • 30 days easy returns
  • Order yours before 5:00pm for same day dispatch



Flashforge Guider 3 Ultra-28561
Flashforge Guider 3 Ultra-28561
$3,093.75

[wpforms id=”1190″ title=”true” description=”Request a call back”]

The FlashForge Guider 3 Ultra is an ideal choice for commercial-grade additive manufacturing, offering reliable and efficient performance. Thanks to its CoreXY design, this 3D printer combines FlashForge’s renowned technology with high speed printing, high fidelity, and quiet operation in one convenient package. Whether you need high-precision prints or silent printing, the FlashForge Guider 3 Ultra is the perfect all-in-one solution.

  • Dual Extrusion High speed & quiet printing
  • Built-in filament drying chamber & Hepa 13 air filtration
  • Flexible and removable steel plate

Features

The FlashForge Guider 3 Ultra offers unparalleled speed and efficiency for your business needs with its CoreXY design, combining the best of FlashForge‘s renowned technology.

  • High speed 500mm/s print speed.
  • Extremely sturdy z-axis guides and ball screws for the stability of large models and long print jobs
  • Built-in filament drying chamber & Hepa 13 air filtration system
  • High-temperature extruder 320C
  • Quick release nozzle
  • Passive filament storage chambers

Specifications

Printing

Printing Precision:  ±0.15mm or 0.002mm/mm
Position Precision:  X/Y axis: 0.011 mm;  Z axis; 0.0025 mm
Layer Thickness:  0.05-0.4mm
Build Volume: 330(L) x 330(W) x 600(H) mm
Nozzle Diameter:  0.4 mm Standard (Optional 0.6 mm/0.8 mm)
Maximum Extruder Temperature: 350°C (608°F)
Adjustable Heated Build Plate Temperature:  Up to 110°C (230°F)
Filament Diameter:  1.75 mm
Filament Compatibility:  PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA
Print Speed: 10-500 mm/s

Mechanical & Dimensions

Number of Extruders: One
Printer Dimensions: 496 (L) x 436 (W) x 696 (H) mm (19.5 x 17 x 27 in)
Packaging Dimensions: 585 (L) x 530 W) x 760 (H) mm (23 x 21 x 30 in)
Net Weight:  60 LBS (27 KG)

Electrical

Power Supply:  AC100-240V / DC24V / 20.8A, 650W
HD Touch Screen:  4.3 inch
Connectivity:  USB Cable, USB Stick, Wi-Fi, Ethernet
Certification:  CE / FCC / RoHS

Software

Software: FlashPrint
Compatible Slicing Software: Slic3r, Skeinforge, Cura (Require to set up), Simplify3D (Coming Soon)
File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG
File Output Format: GX / G / gcode
