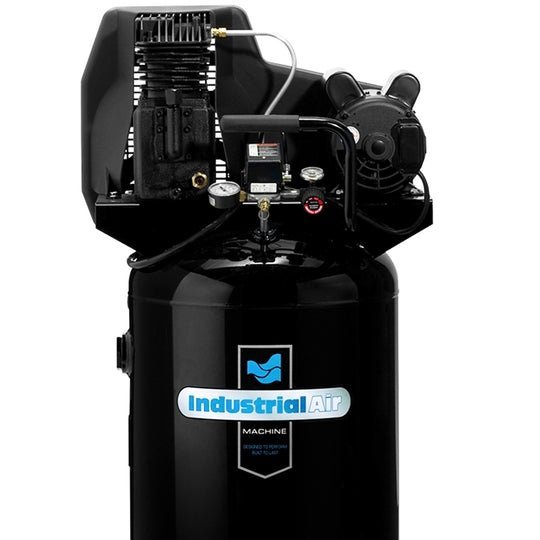

- Cast iron, twin cylinder, oil lubricated pump
- Dual voltage motor is wired for standard 120-Volt outlet and may also be converted for 240-Volt application
- 155 PSI max pressure for optimum tool performance
- 30-Gallon ASME vertical portable tank with pre-attached pneumatic tires, quick-set regulator, tank and working pressure gauges and on/off switch
- Maximum pressure: 155 PSI; CFM at 90 PSI: 5.7; CFM at 40 PSI: 7.0; RHP: 1.9; UL and CSA certified
- 1-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | ILA1883054 |
| Brand | Industrial Air |
| Manufacturer | MAT Industries |
| Color | Black |
| Voltage | 120/240V |
| Air Consumption at 90 PSI (SCFM) | 5.7 SCFM |
| Amperage | 12 Amp |
| Phase | 1 Phase |
| Horsepower | 1.9 HP |
| Lubrication | Oil-Lube |
| Motor Type | Single Stage |
| Operating Pressure (Psi) | 150 Psi |
| Tank Capacity | 30 gallon |
| Tank Construction | Cast Iron |
| Tank Orientation | Vertical |
| Tank Outlet (In.) | 1/4 In. |
| Product Dimensions (In.) | 24.8 x 24.8 x 49.8 In. |
| Shipping Weight (lbs) | 185 lbs |
