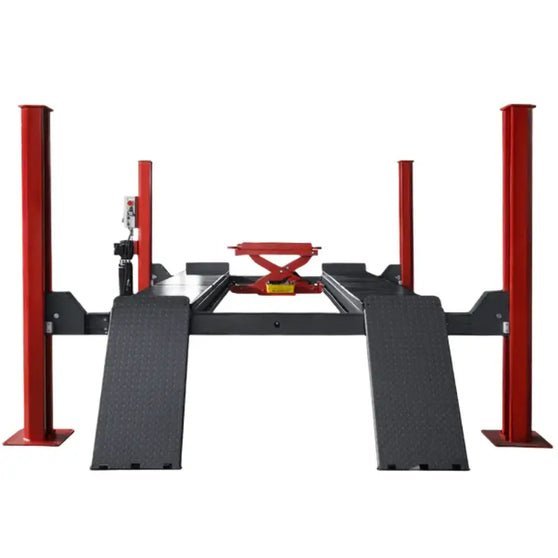

KT-4H150, 4 Post Parking Lift by Katool

Juggling jacks and stands for complex car projects is inefficient and potentially unsafe. The Katool KT-4H150 Parking Lift is here to revolutionize your car care routine. With a staggering 15,000-lb lifting capacity and CE-certified design, the KT-4H150 tackles even the toughest jobs with ease. Safety is prioritized with multiple locking points, a single-point safety release, and a non-slip platform which is good for conducting repairs on rainy days.

Convenience is built-in with a reversible motor column, and an included Rolling Jack. This all-in-one solution streamlines your workflow and maximizes your productivity. Stop struggling with makeshift solutions. Invest in the KT-4H150 today and experience the difference! Enjoy a complete car care solution with unmatched safety, strength, and convenience.

Katool 15,000lb Lift Specifications:

  • Lifting Capacity: 15,000 lb
  • Max Lifting Height: 75″
  • Height of Posts: 86″
  • Overall Width:  136″
  • Length (w/ ramps): 245″
  • Length (w/o ramps): 208″
  • Inside Columns: 118″
  • Inside Runways: 43″
  • Min. Runway Height: 9″
  • Pad: 14.56″ x 17.12″
  • Lock Position: Every 4.7″ (12 total)
  • Power: 220V/60HZ/1PH
  • Oil: AW-46 or AW-32 (colder climates)
  • Pallet Dimensions:
    • Lift: 4057 lbs 200x27x33 (inches)
    • Pump: 441 lbs 40x24x15 (inches)
    • 2x Ramps : 66 lbs 47x20x12 (inches)
    • Rolling Jack：330lbs 46x25x13 (inches)

4H150 Special Features:

  • 15,000 LB Capacity: Perfect for larger trucks, vans, duallys, and heavy-duty work vehicles.

  • CE Certified: Tested to 115% dynamic and 150% static load standards for industry-grade safety and durability.

  • Rolling Jack Included: Pneumatic-over-hydraulic jack tray allows for wheel service above the runways. Requires external air source.

  • Manual Safety Release: Single-point manual release engages 4 mechanical locking positions for added peace of mind.

  • Redundant Safety Locks: Each post includes primary and secondary locking systems for built-in backup protection.

  • Flexible Power Column Placement: Mount the power-side post in the front, rear, or either side—whichever fits your shop best.

  • Non-Skid Diamond Plate Runways: Textured platforms keep tires from slipping during approach and lift.

  • Heavy-Duty Cable & Pulleys: 7/16″ thick cables and steel pulleys ensure smooth, long-lasting operation.

  • Permanent Setup: This model does not support caster kits and is intended for fixed installation.

  • Updated Color Scheme: Now available in Katool’s new orange and gray finish for a bold, modern shop look.

  • Optional Add-Ons: Turntables for alignment sold separately.

  • Katool Warranty: One-year (12 months) warranty on all parts and against product defects, free of charge. Vehicle lifts include an additional three-year (36 months) warranty on all structural components.
