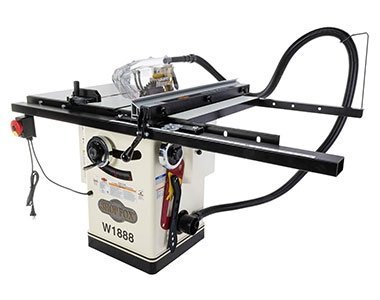

Features for the Shop Fox W1888 Table Saw

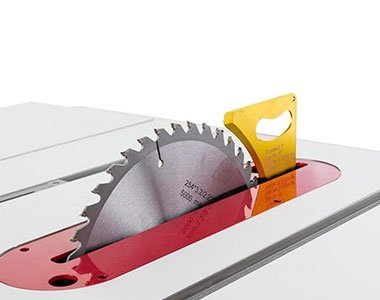

This hybrid table saw stands out from the crowd with innovative features, such as a fully enclosed blade guard with its own separate dust port, an easy-glide, two position fence system that quickly converts for narrow ripping, and a quick-release spreader/riving knife for easy changeovers. Combine those features with the heavy-duty cast-iron table, trunnions, and blade adjustment handwheels, as well as sturdy preformed steel cabinet, and you have a solid machine that beats all others in its class.
Specifications
Motor: 2 HP, 115V/230V (prewired 115V), single-phase, 16A/8A
Rip capacity: 31-1/2″ right, 11-3/8″ left of blade
Max depth of cut at 90 degrees: 3-1/8″
Max depth of cut at 45 degrees: 2-1/8″
Table Size: 40-1/8″ x 27″
Distance from front of table to center of blade: 16-1/4″
Floor-to-table height: 34-1/4″
Arbor diameter: 5/8″
Arbor speed: 4000 RPM
Max width of dado: 13/16″
Dust port size: 4″
Dimensions: 63″ x 40″ x 48″
Footprint: 19-1/2″ x 20-1/2″
