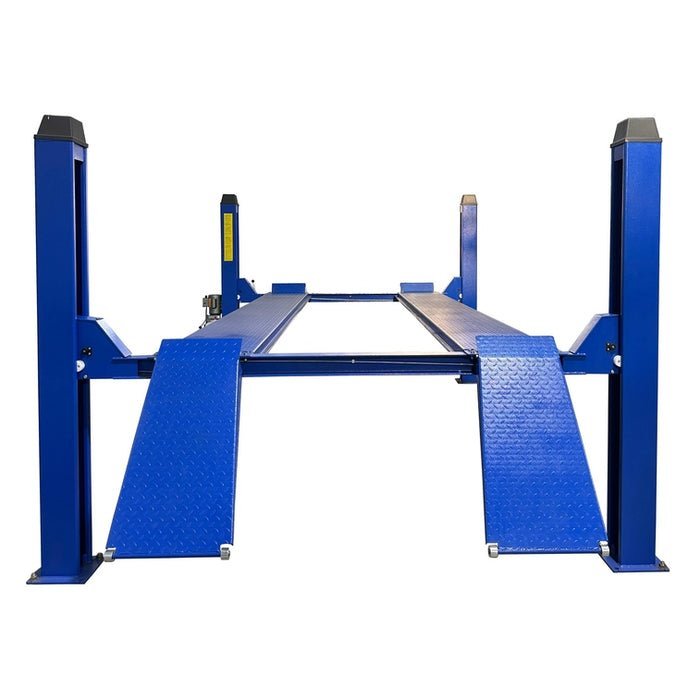

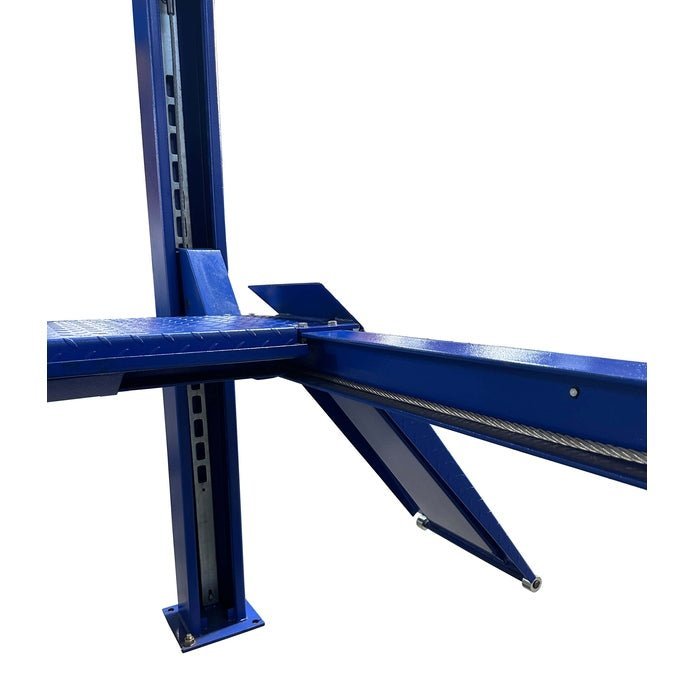

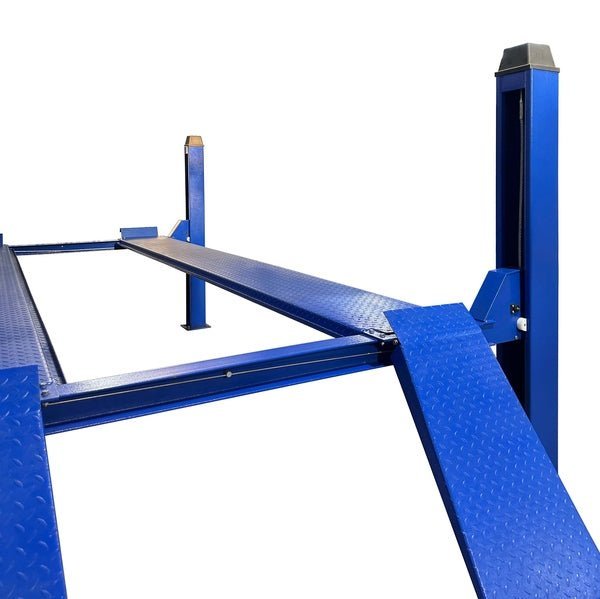

Tuxedo 12,000 lb Four Post Lift Cable Driven

*Jack sold separately

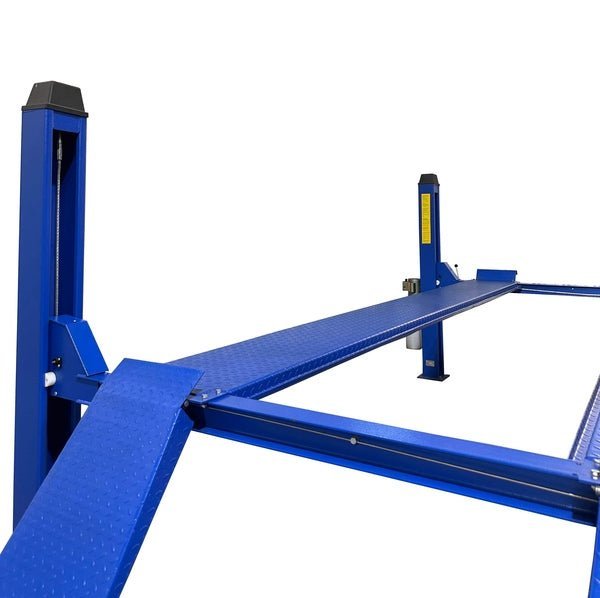

Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.

Features

  • 12,000 lbs Capacity

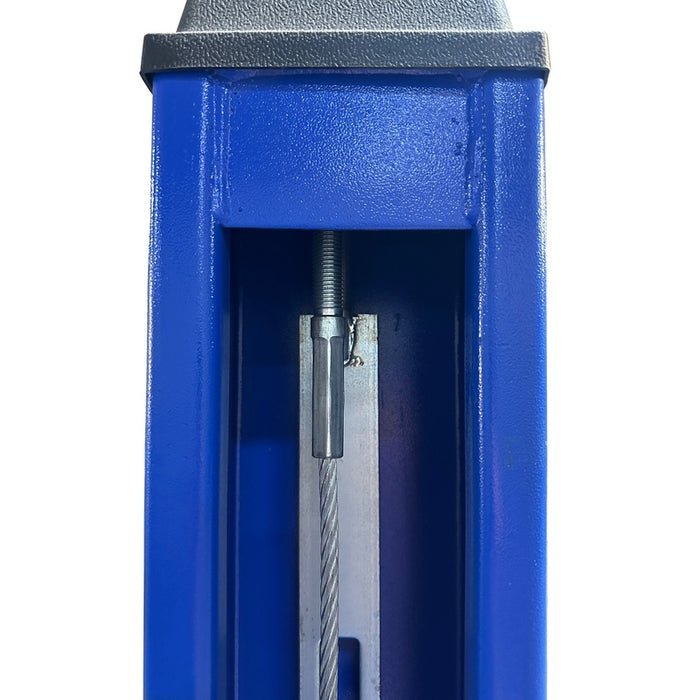

  • Cable Driven
  • 176 max wheelbase

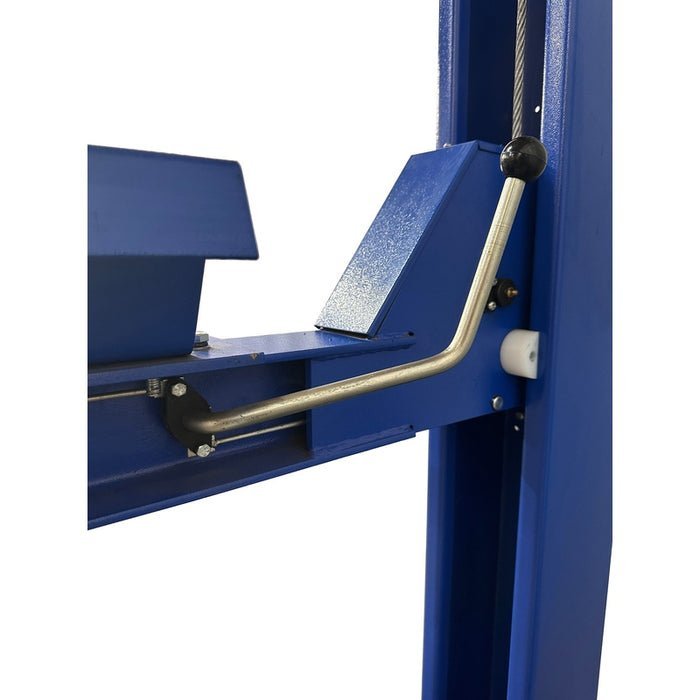

  • Single Point Manual Lock Release

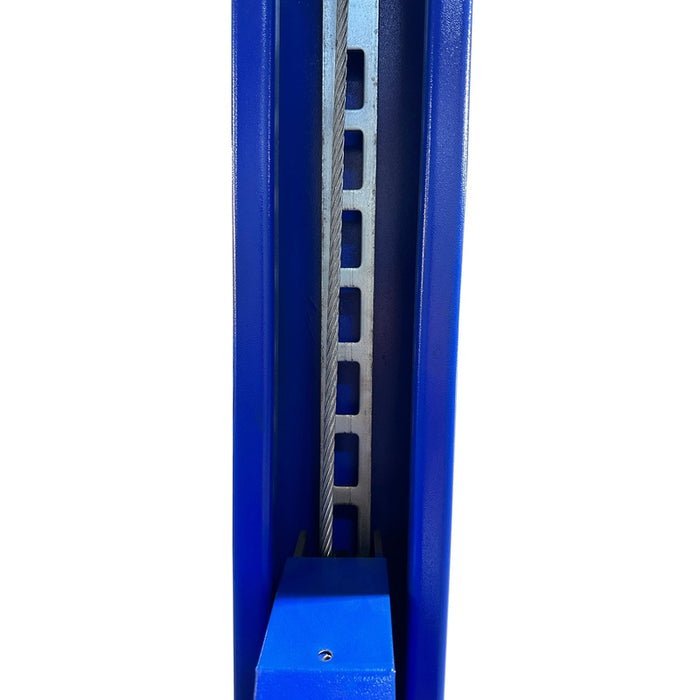

  • Adjustable Locking Positions
  • Slack Cable Safety
  • No Overhead Obstructions
  • Powder Coat Finish

Specifications

Lift Model FP12K-K
Capacity 12,000 lbs.
Overall Length w/Ramp 232-1/2″
Overall Width(Without Power Unit) 123″
Overall Width (With Power Unit) 134″
Overall Height 84″
Max Rise Height 67-1/2″
Min Height 7″
Width Between Posts 105″
Length Between Posts 177″
Width Between Runways 36-1/2″
Width Of Runways 19″
Max Wheelbase 167″

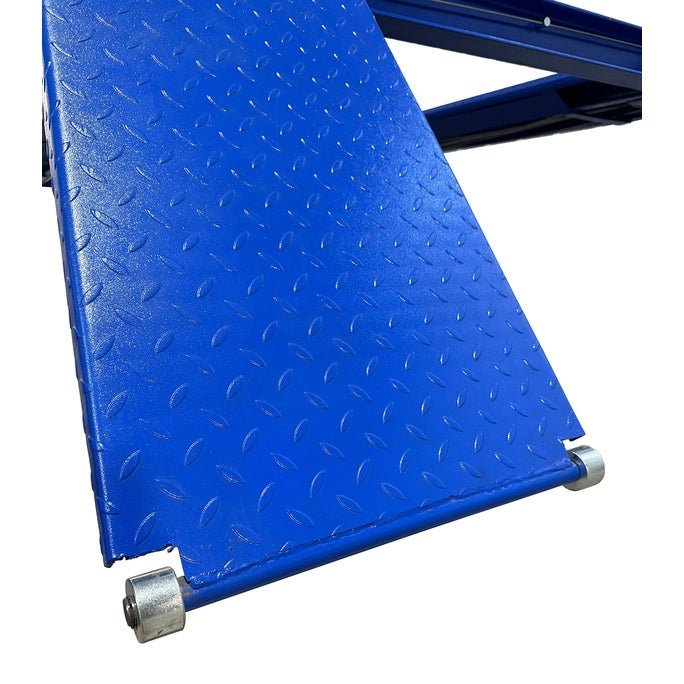

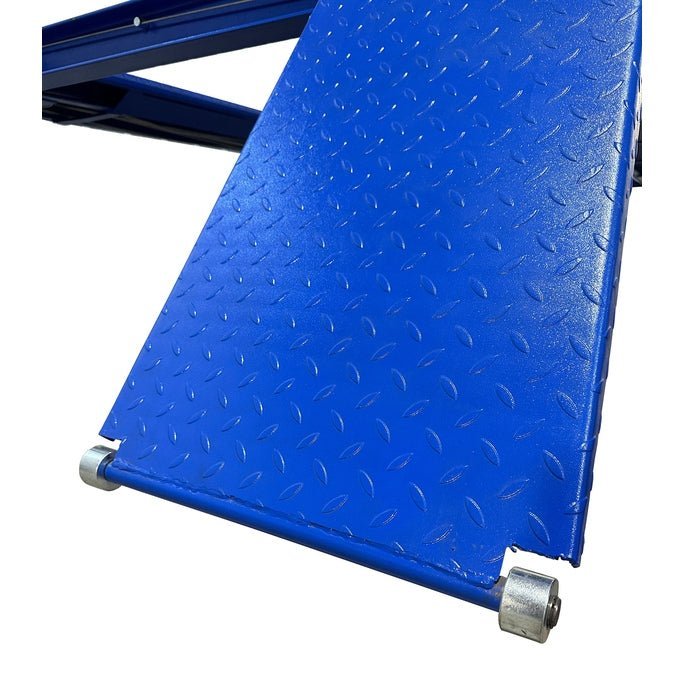

Ramp Length 35″
Max. Clearance Under Runway 63-1/4″
Drive-Thru Clearance 87-1/2″
Base Plate 11″ X 11″
Power Requirement 220V 20 Amp 1PH
Ship Weight 2,255 lbs.
Min Bay Size 15″ x 23″
